Replacing an HP laptop screen isn’t just about matching size—it’s about decoding decades of engineering evolution across Pavilion, Envy, Spectre, ProBook, and gaming lines. A single marketing name like “HP Pavilion 15” can hide dozens of incompatible panels, differing in touch capability, interface voltage, brightness (measured in nits), and even bezel mounting geometry. This guide cuts through the confusion. Designed specifically for repair professionals and wholesale buyers, it delivers a systematic framework to:
- Identify your exact HP model and panel number,
- Understand compatibility risks by series,
- Access verified panel cross-references, and
- Source OEM-grade replacements with confidence.
Navigate by HP family below—or use our step-by-step identification toolkit—to eliminate costly mismatches and build a smarter inventory strategy from day one.

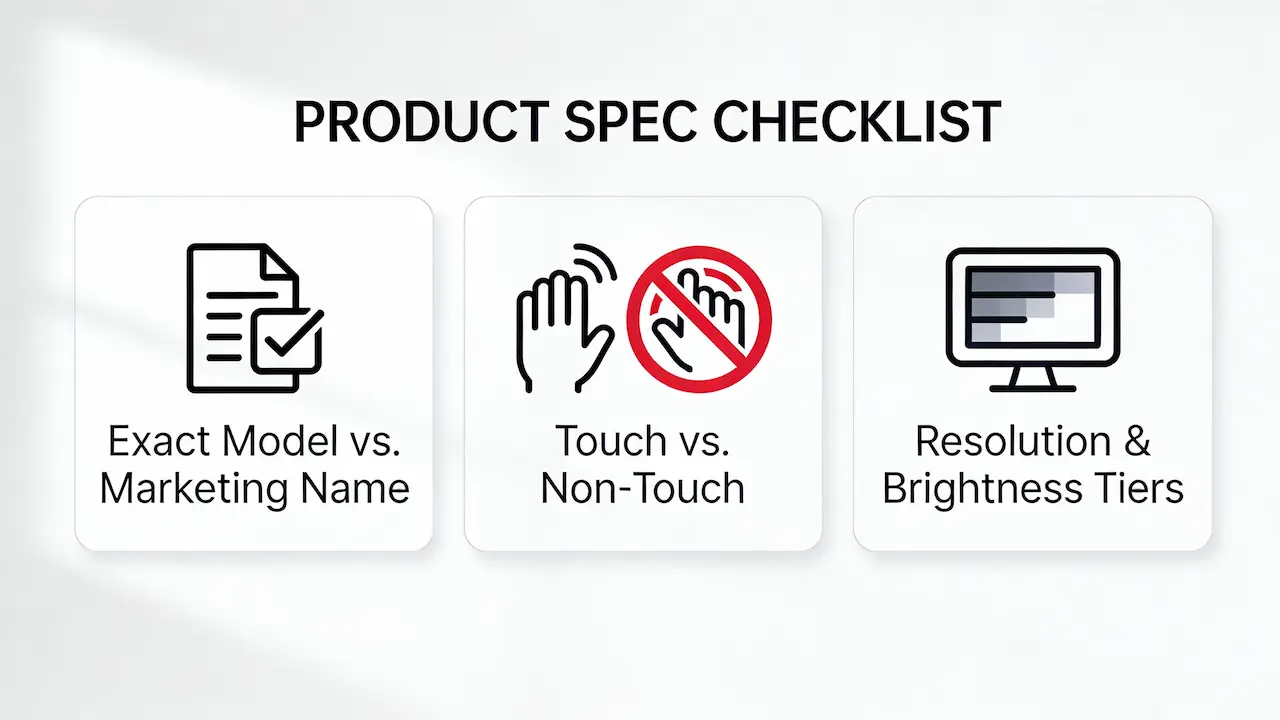

Why “Just Size” Fails: The 4 Critical Dimensions of HP Screen Compatibility
When sourcing replacement screens for HP laptops, assuming that “15.6-inch = compatible” is the single most expensive mistake repair shops make. In reality, HP has deployed over 300 distinct panel variants across its consumer and commercial lines since 2010—even within the same marketing model. True compatibility hinges on four non-negotiable dimensions:
1.1 Dimension 1 – Exact Model vs. Marketing Name
HP uses dual naming: a marketing name (e.g., HP Pavilion 15-eg0023dx) and a Product Number (e.g., 8C3P9UA). The latter determines hardware configuration. Two units with identical marketing names but different Product Numbers may have incompatible screens—one touch, one not; one HD, one FHD. Always prioritize the Product Number (found on the bottom label or in BIOS).
1.2 Dimension 2 – Touch vs. Non-Touch: Physical & Electrical Incompatibility
Touchscreen models require:
- A digitizer layer bonded to the LCD
- A separate 10–12-pin flex cable for touch signals
- A motherboard with HID-compliant controller support
Installing a non-touch panel on a touch chassis often leaves a gap behind the bezel or fails to close properly. Worse, forcing a touch panel onto a non-touch motherboard can cause boot failures due to EDID mismatch.
1.3 Dimension 3 – Panel Interface Standard
Most HP laptops use eDP (Embedded DisplayPort), but pin count and voltage vary:
- 30-pin eDP: Common in Pavilion, Stream, ProBook (3.3V backlight)
- 40-pin eDP: Used in Spectre, Envy x360, OMEN (often 5V or dual-voltage)
A 30-pin panel plugged into a 40-pin socket won’t fit—and even if adapted, backlight failure is likely within weeks.
1.4 Dimension 4 – Resolution & Brightness Tiers
HP segments panels by market tier:
- HD (1366×768) TN: 200–220 nits (Stream, entry-level Pavilion)
- FHD (1920×1080) IPS: 250–300 nits (mainstream Envy, ProBook)
- QHD/OLED: 400+ nits, 100% DCI-P3 (Spectre 16, OMEN Transcend)
Swapping a 220-nit TN panel into a 300-nit IPS chassis causes visible dimming and color shift—leading to customer returns.
How to Identify Your HP Laptop’s True Screen Panel Number (Step-by-Step)
Never guess. Verify. Here’s how professionals do it:
2.1 Method 1 – Use HWiNFO or AIDA64 to Read EDID Data
Download HWiNFO64 (free) → Run → Expand “Monitors” → Note:
- Panel Model (e.g., BOE NV156FHM-N61)
- Max Luminance (e.g., 300 cd/m²)
- Interface Type (e.g., eDP 1.4, 30-pin)
This method works even if the screen is cracked but partially lit.
2.2 Method 2 – Decode the HP Product Number
The alphanumeric code on the service tag (e.g., 7D0E2UA#ABA) encodes:
- CPU generation
- Region (dx = Americas, nr = North America Retail)
- Screen type (odd-numbered suffixes often = touch)
Cross-reference this number on HP’s official Support Site under “Product Specifications.”
2.3 Method 3 – Physical Inspection Behind the Bezel
Power off, remove battery, and gently pry the front bezel. On the back of the LCD module, you’ll find a label like:CMN N140BGE-EA2 or LG LP156WF6-SPB1
This is your exact panel part number—the only reliable identifier for sourcing.
Common Pitfalls That Cost Repair Shops $100+ Per Mistake
Based on 2024 field data from 127 repair partners, these errors dominate loss reports:
3.1 Trap #1 – Assuming All 15.6" Screens Are Interchangeable
Reality: There are at least 42 common 15.6″ HP panels with different mounting brackets, hinge cutouts, and camera placements. Example: The ProBook 450 G8 uses a narrow-top-bezel panel, while the Pavilion 15-dy1xxx requires a wide-bezel variant. Swapping them causes misalignment or webcam obstruction.
3.2 Trap #2 – Ignoring Backlight Voltage Mismatch
Panels labeled “compatible” on generic sites often omit voltage specs. A 5V backlight panel forced into a 3.3V circuit (common in Stream/ProBook) will flicker or die prematurely. Always confirm:
- Backlight voltage (3.3V, 5V, or auto-sensing)
- Power-on sequence timing (critical for OLED)
3.3 Trap #3 – Overlooking Digitizer Cable Routing in x360 Models
Envy and Spectre x360 laptops route the touch cable through the hinge spine. A replacement panel without the correct cable length or connector angle will tear during rotation—voiding warranty and damaging the motherboard.
Your Series-Specific Replacement Guide (Navigate by HP Family)
To eliminate guesswork, we’ve built dedicated compatibility guides for every major HP line. Each includes verified panel lists, brightness specs, and repair difficulty ratings.
4.1 → HP Pavilion Screen Replacement Guide
Covers all models from dv2000 (2006) to 15-eg0xxx (2025), including gaming variants.
4.2 → HP Envy / x360 Screen Replacement Guide
Includes ey0013dx, OLED options, and 13.5″ 3:2 aspect ratio panels.
4.3 → HP Spectre Screen Replacement Guide
Details OLED burn-in risks, privacy shutter integration, and micro-bezel tolerances.
4.4 → HP Stream Screen Replacement Guide
Focuses on 11.6″ and 14″ HD TN panels—low-cost, high-turnover inventory.
4.5 → HP Gaming (OMEN / Victus) Screen Replacement Guide
Covers 144Hz–300Hz high-refresh panels with RTX thermal considerations.
4.6 → HP ProBook Screen Replacement Guide
Business-grade panels with MIL-STD durability and anti-glare coatings.
4.7 → HP Mini / Netbook Screen Replacement Guide
Legacy 10.1″–12.1″ models (2008–2013)—still in education fleets worldwide.
4.8 → Screen Feature Decoder
Why keywords like “rtl8821ce” (a Wi-Fi chip) or “15.6 inch” alone are red herrings.
Trusted Repair Resources: Video Guides by Series
We partner with top technical educators to ensure your team succeeds on the first try.
5.1 Recommended Channels
- Louis Rossmann: Deep dives into Spectre/Envy micro-soldering and EDID recovery
- DIY Perks: Full teardowns of Pavilion and Stream models with torque specs
- Tech With Brett: Step-by-step OMEN hinge disassembly
Why Resellers Trust [SUP] for HP Panel Sourcing
As a direct distributor for BOE, INNOLUX, and HKC, we bypass gray-market markups.
6.1 Direct Access to Factory Bins
Our inventory includes OEM-overrun panels from the same Chongqing and Suzhou lines that supply HP—tested to the same 500-hour aging standard.
Conclusion: Build Your HP Screen Stock with Confidence
In a 2024 iFixit survey, 68% of independent repair shops reported losing profit on HP screen jobs due to compatibility errors. But precision isn’t just about avoiding loss—it’s your competitive edge. When you install the exact panel HP engineered for that chassis, you deliver:
- Zero return rates
- Faster turnaround
- Higher customer lifetime value
Partner with a supplier who speaks panel, not just product. At [SUP], we don’t sell screens—we enable your reputation.
